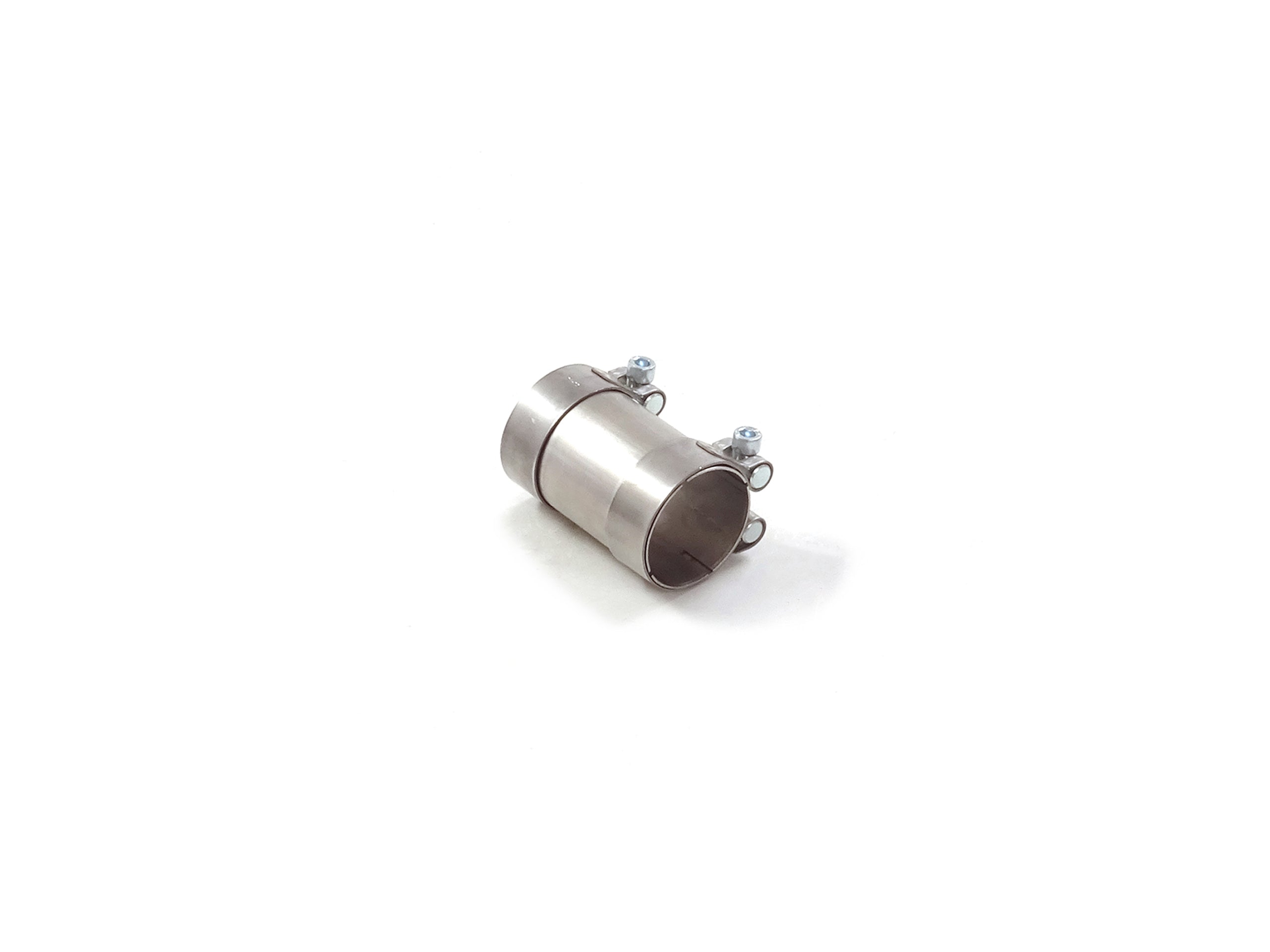

Audi A1/A5/TT GB-8S Connecting Sleeve 601002980

The Connecting Sleeve is a vehicle-specific exhaust component designed for Audi A1 A5 TT GB 8T F5 FV 8S. It is developed for precise fitment, reliable performance and compatibility with the specified vehicle applications.

Fitment:

• Audi A1 (Type GB) 2018 - 40TFSI (147kW) 2018-2020
• Audi A5 (Type 8T) 2007-2016 - Sportback Quattro 2.0TFSI (155kW) 2008-2013
• Audi A5 (Type F5) 2016 - Coupè Quattro 2.0TFSI (185kW) 2016-08/2018
• Audi TT (Type FV / 8S) 2014-2023 - Coupè Quattro 2.0TFSI (169kW) 07/2014-06/2018
• Audi TT (Type FV / 8S) 2014-2023 - Coupè Quattro 45TFSI (180kW) 12/2018-2023

Product Details:

• Connecting sleeve for the installation of 54.0412.00 / 55.0742.00 on the 55.0743.00 centre muffler
• Connecting sleeve for the installation of 57.0139.00 on the 50.0859.61 / 50.0860.60 / 50.0860.73 rear muffler and Connecting sleeve for the installation of 57.0138.00 on the 57.0139.00 centre muffler
• Connecting sleeve for the installation of 50.0850.80 on the 57.0137.00 / 55.0645.00 centre muffler
• Connecting sleeve for the installation of 50.0865.80 / 50.0901.80 on the 55.0655.00 centre muffler
• Connecting sleeve for the installation of 50.0979.80 / 50.1003.80 on the 55.0655.00 / 50.1202.80 / 50.1203.80 centre muffler

Technical Specifications:

• Inner input diameter 70 mm
• Outer input diameter 70 mm

Installation: Professional installation is recommended. Some exhaust components may require cutting, connection sleeves, ECU software adjustment or additional mounting parts where specified in the product details.
